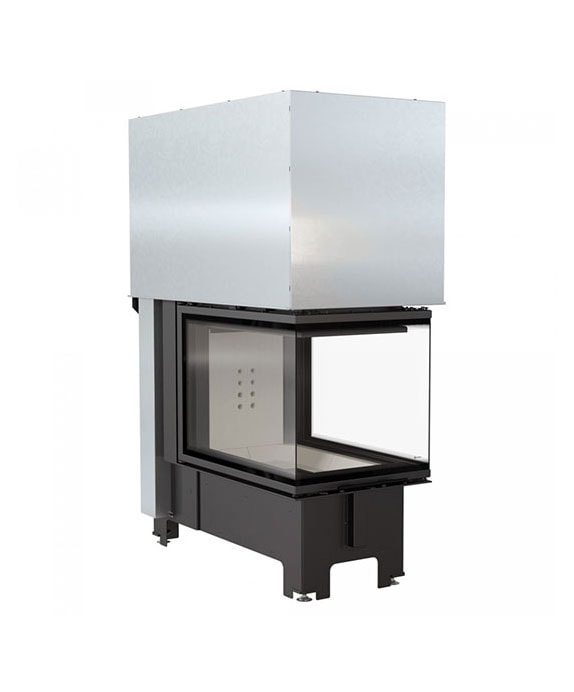

Three-sided Glazed NBU Insert

Three-sided glazed NBU insert has a unique aesthetic and exceptional functionality. The singular decorative glass visually enlarges the front of the insert and emphasizes the view of the fire. Apart from these visual effects, the insert guarantees efficient heating and ecological wood combustion.

• 3 Large Viewing Windows
• Frameless Glass Design
• Acumotte Lining
• Heat-Resistant Ceramic Glass up to 800°C
• Parental lock protecting from uncontrolled door opening
• Self-Cleaning Glass
• Elegant “Lift Up” Sliding Door Made From High Quality Heat Resistant Steel
• External Air Supply

Technical
Rated output: 11 kW
Heating Power Range: 4.5-14kW
Heating Efficiency: 83 %
Weight of Fireplace: ≈ 299 kg
Exhaust Flue Diameter: 200 mm
Max Log length: 650mm
CO emissions (at 13% O2) ≤ given in %: 0
Energy Efficiency Index (EEI): 111.4
Average flue gas temperature: 180°C
Dimensions (HxWxD): 147.1 x 105 x 57.8 cm

Configurations
Three Sided Glass
