Modern OVAL Heating Fireplace

This fireplace sets the bar for modern cylindrical heating. The large firebox and external air supply are accompanied by a cast iron grate and accumote (ceramic) lining for better heating performance. Logs up to 500mm in length can be placed within this fireplace, allowing for a longer burning time. Its high heat output will comfortably warm any home.

• Stoves insert casing and top panel made of steel, suitable for use at elevated temperatures
• Two deflectors (steel and Acumotte) that increase the exhaust gas path
• Doors installed with heat-resistant ceramic glass, withstands temperatures up to 800°C
• Cooking and food reheating ability compliments this robust heater

Technical
Rated output: 10 kW Eu / 9.5kW Au
Heating Power Range: 4-12kW
Heating Efficiency: 80 % Eu / 61% Au
Weight of Fireplace: ≈ 149 kg
Exhaust Flue Diameter: 150 mm
Max Log length: 500 mm
CO emissions (at 13% O2) ≤ given in %: 0
Energy Efficiency Index (EEI): 105.4
Average flue gas temperature: 280°C
Dimensions (HxWxD): 105.2 x 76.1 x 46 cm
Particulate Emission Factor: 0.9g/Kg

Configurations

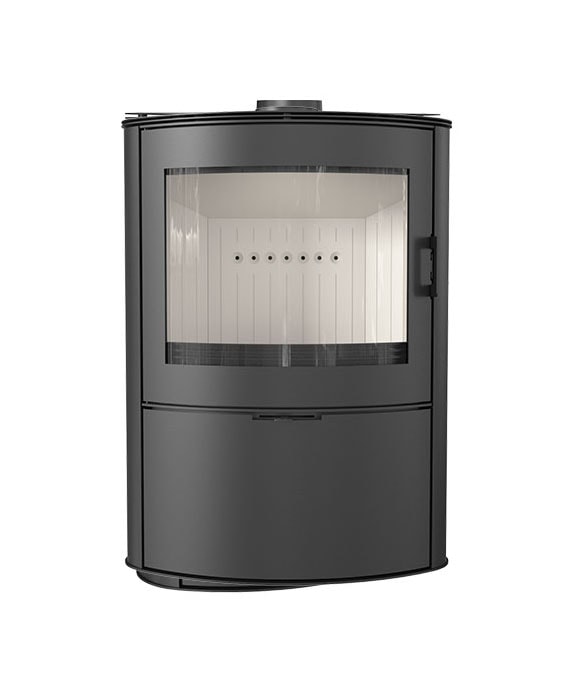

Front Facing Glass
