Kaseta /Arke

Please contact the Store with your specific Fluekit Requirement and its Pricing.

Price

  • From:
    $3,960.00

Note : Shipping will not be charged during checkout. You will be contacted with a separate shipping quote before dispatch.

Type

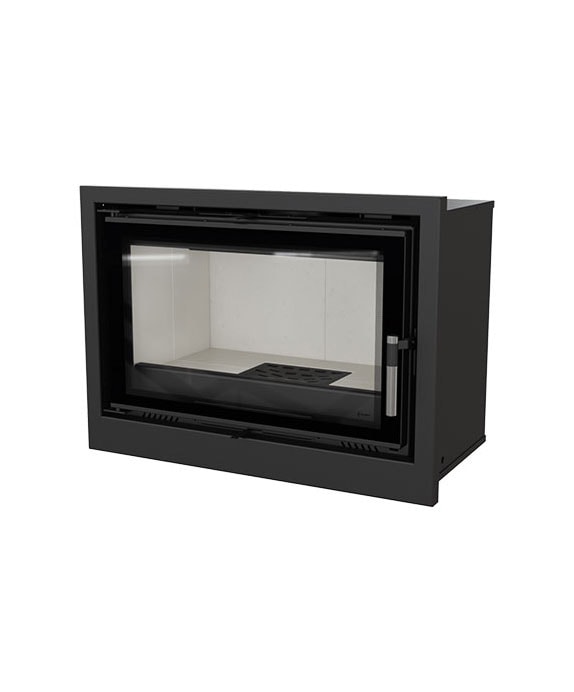

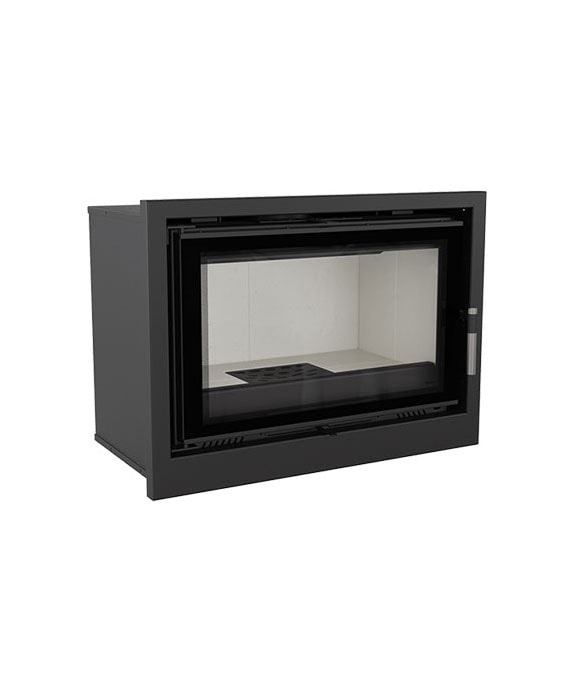

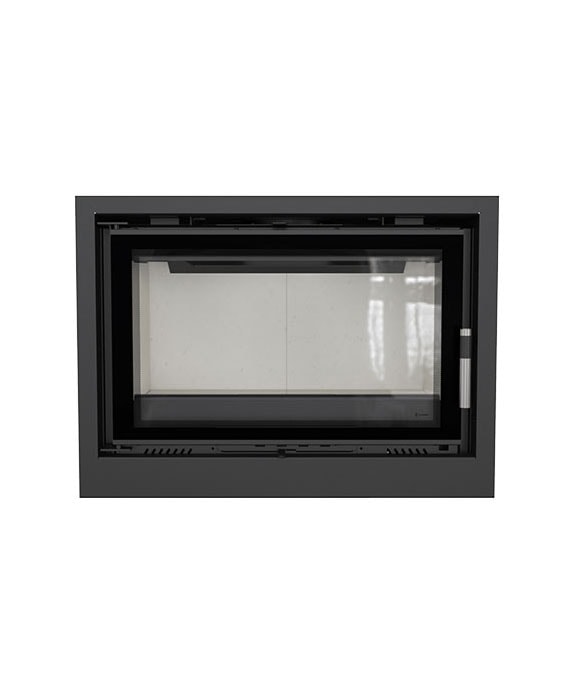

Contemporary Cassette Fireplace Insert

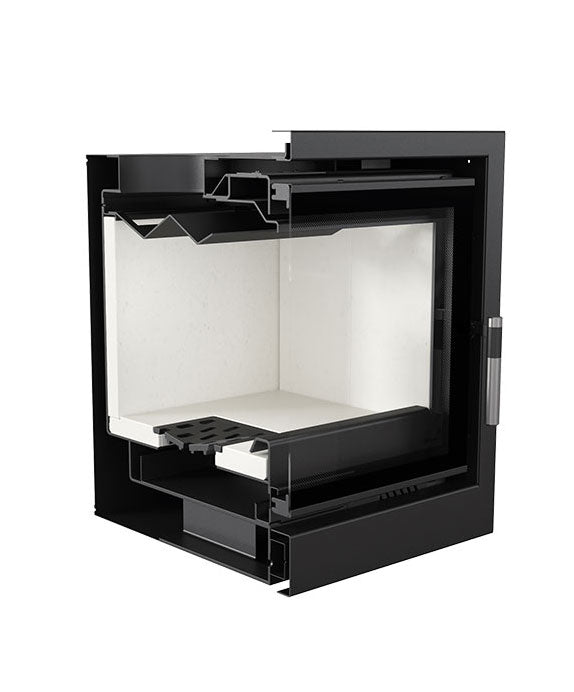

Contemporary cassette fireplace insert with a compact design and medium heat output. This insert has an accumulate (ceramic) lining and cast iron grate to support efficient wood fire burning.

Features
  • Body made of steel sheets with a thickness of 4 mm, designed to operate at elevated temperatures.
  • Cassette standard is equipped with a single decorative outer glass that can withstand temperatures up to 800°C.
  • The profiled baffle slows the release of gases from the chamber allowing for after burning.
  • 2 speed electric fan for fast heat distribution.
  • Provision for connecting hot air manifolds for adjoining rooms.
  • Rated output: 16 kW

Technical:
Rated output: 8 kW
Heating Power Range: 3.5-10kW [ Arke 70]
Heating Power Range: 6-16kW [ Arke 80]
Heating Power Range:  6-16.5kW [ Arke 95]
Heating Efficiency: 84 %
Weight of Fireplace: ≈ 110 kg
Exhaust Flue Diameter: 150 mm
Max Log length: 550 mm
CO emissions (at 13% O2) ≤ given in %: 0
Energy Efficiency Index (EEI): 110.62
Average flue gas temperature: 165°C
Dimensions (HxWxD): 52 x 76 x 52.8 cm [ Arke 70]
Dimensions (HxWxD): 61.8 x 85 x 52.8 cm [ Arke 80]
Dimensions (HxWxD): 62.4 x 102 x 52.8 cm [ Arke 95]


Configurations:
Front Facing Glass





Make an Enquiry Download Brochure
